Three Step Filtration System Weighing Booth , Dispensing Booth Pharmaceutical Industries

Suzhou Indair indoor air technology co.,ltd
Contact Now
    Buy cheap Three Step Filtration System Weighing Booth , Dispensing Booth Pharmaceutical Industries from wholesalers

    Buy cheap Three Step Filtration System Weighing Booth , Dispensing Booth Pharmaceutical Industries from wholesalers
    • Buy cheap Three Step Filtration System Weighing Booth , Dispensing Booth Pharmaceutical Industries from wholesalers

    Three Step Filtration System Weighing Booth , Dispensing Booth Pharmaceutical Industries

    Ask Lasest Price
    Brand Name : indair
    Model Number : ID-WR-08
    Certification : CE,ISO
    Price : negotiable
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

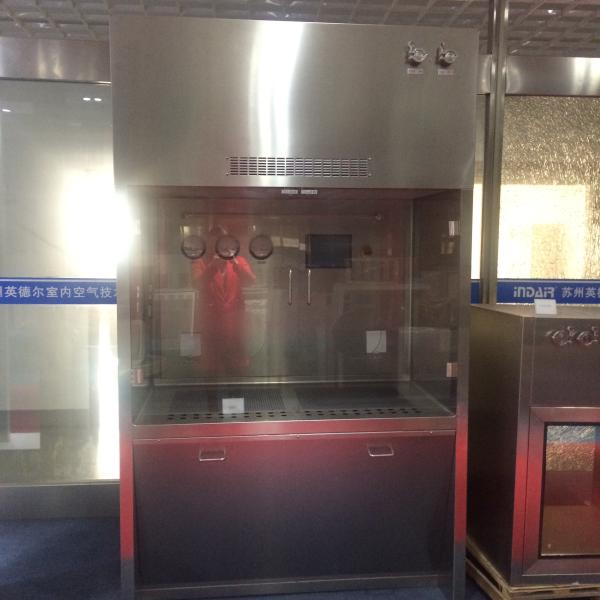

    Three Step Filtration System Weighing Booth , Dispensing Booth Pharmaceutical Industries

    ISO 5 CLASS 100 Stainless Steel Wholesale Weighing Room For Pharmaceuticals Industry


    Pharmaceutical Weighing Booth, Laminar Flow Clean Booth

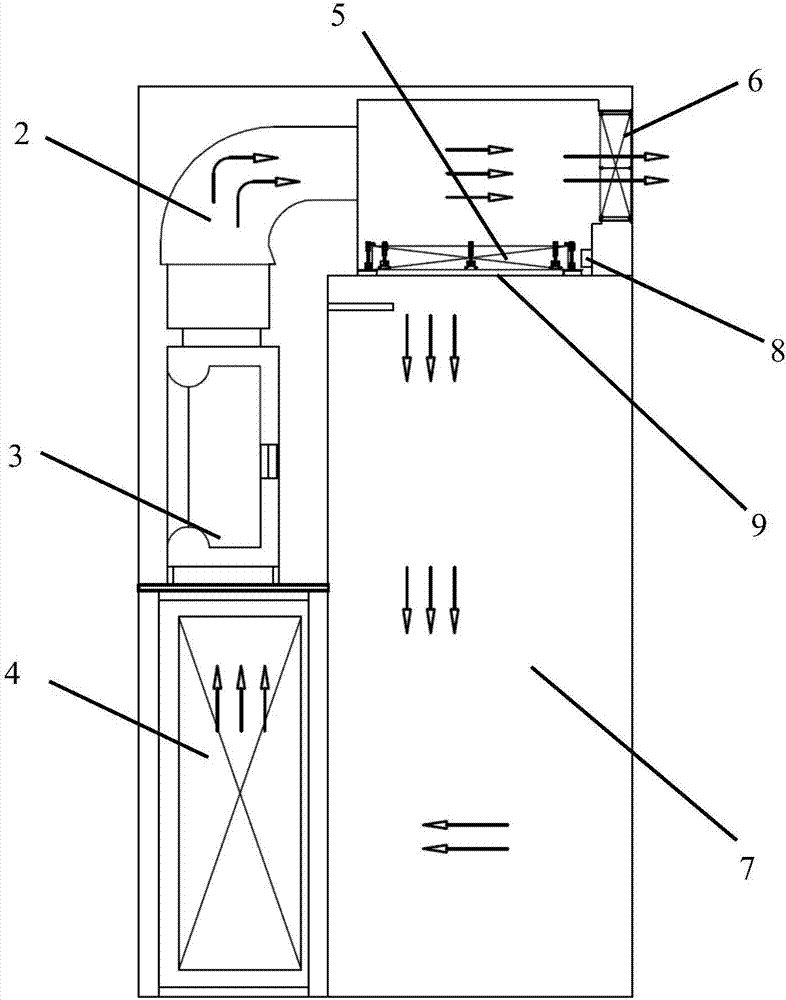

    Weighing Booth also know as laminar flow booth, dispensing booth is for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment, which provides a vertical unidirectional airflow, some clean air circulation in the work area, partly discharged to the nearby area, so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area.


    Quicky Detail:

    • Materal of construction : GI Powder Coated / SS-304 / SS-316
    • Three Stage filtration
    • Pre Filter (90% down to 10 micron)
    • Intermediate Filter (Efficiency:95% down to 3 Microns).
    • Final Supply Filter HEPA Filter of H14 Grade.
    • Efficiency:99.99% down to 0.3 Microns.
    • Exhaust Filter with suitable size.
    • Efficiency: 99.99% down to 0.3 Microns.
    • Assembly the Motor Blower for Statically & Dynamically balanced with suitable
    • Air Cleanliness: Class ISO 5 (class 100)
    • Air Flow Rate:0.45 + 0.1m/sec.
    • Noise Level: Less than 70 DB ‘A’.
    • Differential Pressure : Magnehelic Gauge


    Applications: dispensing booth subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids in clean rooms and so on.

    Main Features

    1. Customized design is welcome.

    2. Unique designed air duct effectively controls the noise.

    3. Smooth transitions of wall and ground can eliminate the blind angle.

    4. Differential pressure gauge is equipped to real-time monitor the filters.

    5. Intelligent control mode and alarm system ensure the reliability of running.

    6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.

    7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.


    Item No.ID - FT3A43RID - FT3A66RID - FT3A97FID - FT4A43P
    MaterialSUS 304 Fingerprint Proof
    RoofUniform flow film
    PowerAC 380V/3ph+1N+1E
    Clean ClassISO CLASS 5 (100 class)
    Outter Size (W x D x H)1500 x 1500 x 2600 mm1900 x 2600 x 2600 mm6100 x 2800 x 2900 mm1500 x 1500 x 2600 mm
    Inner Size (W x D x H)1400 x 1000 x 2000 mm1800 x 1800 x 2000 mm6000 x 2200 x 2200 mm1400 x 1000 x 2000 mm
    EfficiencyG4(EN779)G4(EN779)G4(EN779)G4(EN779)
    F8(EN779)F8(EN779)F8(EN779)F8(EN779)
    H14(EN1822)H14(EN1822)H14(EN1822)H14(EN1822)
    Working Size (L x W x H)800*600*800 mm1200*600*800 mmN.A800*600*800 mm
    Service Rating2.4 kW4.6 kW11.2W3.2 kW
    Average Wind Velocity0.36m/s~0.54m/s
    Touch ScreenSiemens
    PLCSiemens
    PAO Test SizeΦ8MM
    MANOMETERDWYER
    Operation SeparatePC 10” glove
    Air Velocity Transducer0-1 m/soptional
    Light≥400 Lux≥300 Lux
    Anti-hazard classificaitonN.AEX d II BT4
    Outlet220V/1P,10A IP66220V/1P,10A EX dII BT4
