Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14

    Buy cheap Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14 from wholesalers

    Buy cheap Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14 from wholesalers
    • Buy cheap Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14 from wholesalers
    • Buy cheap Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14 from wholesalers

    Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14

    Ask Lasest Price
    Brand Name : indair
    Model Number : ID-GF-04
    Certification : CE,ISO
    Price : negotiable
    Supply Ability : 800 PCS PER DAY
    • Product Details
    • Company Profile

    Top Side Gel Seal Clean Room HEPA Filters , Leak Proof High Flow HEPA Filter H14

    H14 Top Side Gel Seal HEPA Filter for HEPA Box with CE for GMP clean room


    Product Overview

    Mini pleat HEPA/ULPA flter is designed for use in cleanroom ceiling system and equipment where ultra-high efciency fltration is required.Available in a wide variety of standard sizes, our Mini pleat provides optimal performance in variable air volume system.
    UltraMICRO filters are available in the full range of cell side configurations to fit all types of housings and framing systems:
    Gasket Seal
    Gel Seal
    Reverse Gel Seal
    Disposable Ceiling Modules
    Knife Edge
    The filters are made from water resistant,fire retardant, micro fiber glass media.Designed to accommodate higher airflow volume, these filters are used for laminar flow bench,bio safety cabinets, dispensing booths and as terminal filters in cleanroom applications. The UltraMICRO filters designed to meet the demanding airflow and efficiency requirements of the semiconductor, pharmaceutical, biotech, food processing, and other industries in which airborne contaminants must be carefully controlled.These mini-pleat filters combine the right features to give you optimum efficiency while keeping operating costs to a minimum.

    Product Details

    Application: Microelectronic clean rooms and equipment.

    Type: HEPA/ULPA fluid seal filtering panel.

    Frame: Extruded aluminum

    Separator: Hot-melt beads.

    Media: Glass fiber,PTFE
    Gasket: SIL-GEL.

    Grid: Mild steel white epoxy paint.

    Filter class acc. EN 1822: H14 / U15.

    MPPS efficiency: ≥99.995% ,
    ≥ 99.9995% .


    Temperature / Humidity: 70°C / 100% RH.




    Standard Size

    We not only produce all kinds of different normal size Gel Seal HEPA filter,but also accept all kinds of customized
    size Gel Seal
    HEPA filter.Please choose what size you want to buy refer to the below table,

    Model Dimensions
    (W×H×D) mm
    Filter grade
    EN 1822
    Airflow / pressure drop m³/h / Pa (± 15%)Unit
    volume
    416x416x93H14500/2200.014
    554x554x93H141000/2200.035
    915x610x93H142000/2200.052
    1220x610x93H142500/2200.069
    430x430x81H14500/2000.015
    610x610x81H141000/2000.030
    915x610x81H142000/2000.045
    1220x610x81H142500/2000.60
    430x430x75U15500/2000.015
    610x610x75U151250/2000.030
    915x610x75U152000/2000.045
    1220x610x75U152500/2000.60

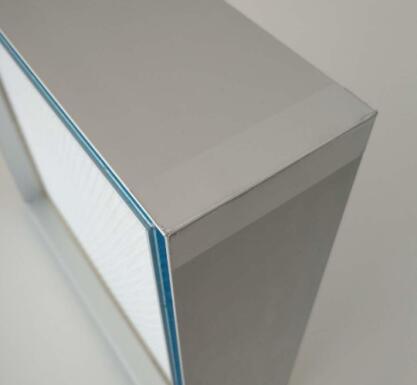

    Top Side H14 Gel Seal HEPA FilterTop Side H14 Gel Seal HEPA Filter
