1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling

    Buy cheap 1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling from wholesalers

    Buy cheap 1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling from wholesalers
    • Buy cheap 1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling from wholesalers
    • Buy cheap 1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling from wholesalers

    1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling

    Ask Lasest Price
    Brand Name : Indair
    Model Number : ID-FFU-008
    Certification : CE,UL,FM,ISO
    Price : negotiable
    Supply Ability : 1000 unit per workday
    • Product Details
    • Company Profile

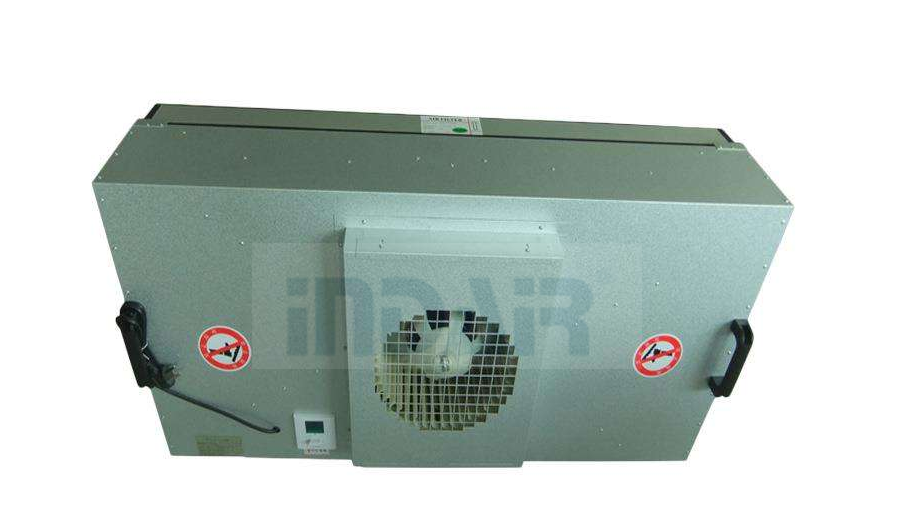

    1175*575 Portable HEPA Filter Unit Corrosion Resistance Easy Installation On Ceiling

    FM approval EBM AC Motor 4*2 feet Clean Room Aluminium zinc plate FFU Fan Filter Unit on the Ceiling


    Description:
    Fan filter unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.

    Characteristic
    1. Corrosion resistance, aging resistance,wide range of construction and size,long service life
    2. Specially designed pinch device,perfect sealing
    3. Easy installation and replacement of HEPA filters


    Description
    High efficiency module is designed as an ideal final filtration unit with replaceable HEPA filters inside and high quality spraying steel cover.It is widely applied in semiconductor, LCD manufacturing, precision machinery, optics, medical science, biology, pharmaceuticals and other industrial fields.


    SupplyAbility:

    1, 1000 Set/Sets per Day

    2, Packaging Details: Standard export packing (Plastic Bag+foam+Carton+Wooden case)

    3, Delivery Time:13days

    4, Port: Shanghai


    Concept of FFU development:
    1. To reduce running cost by saving energy;
    2. To reduce construction cost and term by thin, light and compact structure;
    3. To reduce initial cost by total design of clean room including noise spec. etc;
    4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

    Options available:

    1. ULPA filter (99.9995 @0.1μm)
    2. stainless steel or AL case
    3. super thin design
    4. other requirements

    The advanced test instruments to make sure our products be excllent and ensure our product with advanced techonlogy.

    1. MPPS

    2, DOP TEST INSTRUMENTS

    3, All performance test instruments

    4, Nosie room to make sure the noise of our FFU is lower than any other factory

    5, Scan test instrument

    6, Partical counter

    7, Air Capture Hood


    Our Services

    • Ø 24 hours a day, 7 days a week
    • Ø Better value, fast and efficient
    • Ø 15 years experience
    • Ø Seriously quality control
    • Ø Superb technique

    ItemFFU0612G/S/A-EC-H/U-EFFU1212G/S/A-EC-H/U-E
    Size(mm)1175×575×2801175×1175×320
    Speed(m/s)0.350.40.450.350.40.45
    Overbottom Pressure(Pa)501205012050120501205012050120
    Normal Power Dissipatio(W)75988010585115110165145200190245
    Max Power Dissipation(W)200200200320320320
    Noise dB(A)424446484951505352555557
    HEPA efficiency99.995%(@0.3μm)/99.9995%(@0.12μm)
    HEPA Size (mm)1170×570×70 ( 90 )1170×1170×70 ( 90 )
    Supply PowerAC,220V/50Hz
    ControlDC Motor FFU,5 speed control,system control
     Aluminium zinc plate,aluminum,SUS304,SUS430,SUS201
