    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing

    Ask Lasest Price
    Brand Name : indair
    Model Number : ID-BIBO-02
    Certification : CE,ISO
    Price : negotiable
    Supply Ability : 100 unit per day
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing

    Pocket Filter Housing Bag in Bag out Bibo for changing HEPA fitler Biotechnology Lab

    Bag-In/Bag-Out (BIBO) Safe Change HEPA Filter Housing is a bag type safe change filter housing. It can effectively prevent radioactive, toxic, or bacterial particles and gases from contaminating the environment. BIBO also provides safety for operators.

    Typical applications include the nuclear industry, biochemical laboratories, fuel treatment,chemical and radioactive treatment, CDC and animal diseases research centers, hospitals andother healthcare facilities, toxic waste disposal facilities and biological laboratories.
    Features
    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing

    Testing: All BIBO housings have been tested and qualified after production to ensure it can be operated at an overpressure of up to positive 2500 Pa and negative 3000 Pa.

    Structure: Housings are available as single modules or multi-modules systems and can be stacked to fulfill large air volume requirements, effectively reducing space constraints.

    Filter Change: Filters are in wrapped in completely sealed safe change bags to achieve isolated changing.

    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing
    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing

    Fully enclosing bag system for safe filter change

    Multi-layer filtration can be applied to vertical downflow and horizontal airflow

    Modular design – install any combinations for wide variety of uses.

    Sterilization and Protection of Presure Gauge

    A precise pipe system equipped with mini HEPA filter and sterilization ports can ensure the safety for environment and operators during the changing or calibration of pressure gauge.

    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing
    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing

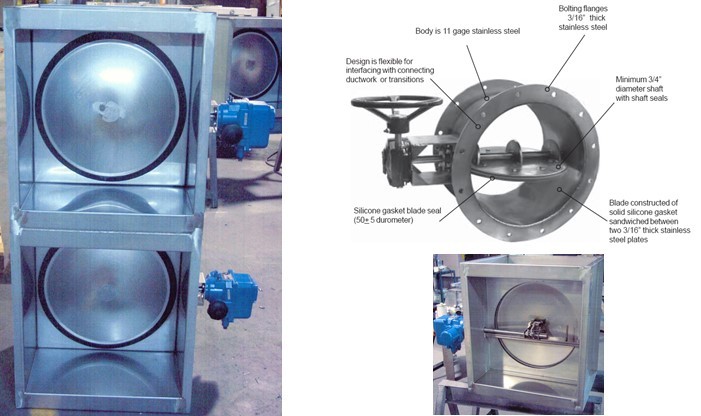

    Low Leak Damper - Leakage Rate 0.0027 cfm/Cubic Ft of Housing Volume

    Bubble Tight Damper - Leakage Rate 0.0005 cfm/Cubic Ft of Housing Volume

    Structural Features

    BIBO can be used vertical downflow and horizontal airflow environment concurrently. It can be installed as a single module, stacked vertically, or in parallel. When in operation, standard pressures are +2500 Pa and -3000 Pa respectively. Highest operating temperature is 60℃.

    H13 Bag In Bag Out HEPA Filter Housing , BIBO Safe Change HEPA Filter Housing

    ItemID-HNHID-1CHID-4CH
    SIZE(L x W x H)708 x 453 x 532 mm 27.9” x 17.9” x 21.0”708 x 708 x 794 mm 27.9” x 27.9” x 31.3”1416 x 1416 x 1694 mm 55.8” x 55.8” x 66.8”
    Max Air Flow1700CMH/1000CFM3400CMH/2000CFM13600CMH/8000CFM
    HEPA Efficiency99.99% @ 0.3um H13 @ EN 1822 610*305*292mm-1pcs99.99% @ 0.3um H13 @ EN 1822 610*610*292mm-1pcs99.99% @ 0.3um H13 @ EN 1822 610*610*292mm-4pcs
    Pre-filterN.AG4 @ EN 1822G4 @ EN 1822
    Carbon FilterN.AN.AVOC
    MaterialEP Coated Cold-rolled steel/SUS 304
    PAO TestSUS 304 Φ10mm
    G.W.52 kg / 115 lbs86 kg / 190 lbs416 kg / 917 lbs
    N.W.41 kg / 90 lbs72 kg / 159 lbs362 kg / 798 lbs
    Pressure SensorOptional 0-500Pa
    HEPA for MinipipeOptional
    Bio Sealed ValveOptional
    Disinfection PortOptional
    HEPA PAO TestOptional
