Side Loading Bag In Bag Out HEPA Filter Housing For Toxic Waste Disposal Facilities

    Buy cheap Side Loading Bag In Bag Out HEPA Filter Housing For Toxic Waste Disposal Facilities from wholesalers

    Buy cheap Side Loading Bag In Bag Out HEPA Filter Housing For Toxic Waste Disposal Facilities from wholesalers
    • Buy cheap Side Loading Bag In Bag Out HEPA Filter Housing For Toxic Waste Disposal Facilities from wholesalers

    Side Loading Bag In Bag Out HEPA Filter Housing For Toxic Waste Disposal Facilities

    Ask Lasest Price
    Brand Name : indair
    Model Number : ID-BIBO-02
    Certification : CE,ISO
    Price : negotiable
    Supply Ability : 100 unit per day
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Side Loading Bag In Bag Out HEPA Filter Housing For Toxic Waste Disposal Facilities

    side loading filter system Pocket Filter Housing Bag in Bag out RPT Safe Change Housing

    Product Description

    • Bag-in & Bag-out Filter system provide a wide performance for preventing the workers from bio-hazard organisms and viruses while they are doing the regular HEPA or ULPA filter replacement work.

    Features

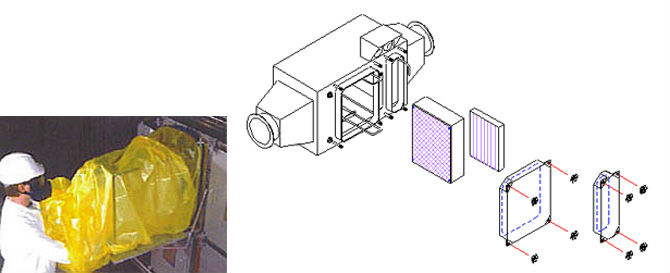

    Magnehelic gauge becomes standard for pre-filter, and ULPA or HEPA filter. The equipment is full welded with argon welding except maintenance access door. It can be made not only at workshop but on site also. Bag-in & Bag-out Filter system includes pre-filter (and maintenance access door), HEPA or ULPA filter (and maintenance access door), inlet & outlet connecting duct flange unit, frame and mounting bracket. It is the most effective equipment available for any zone, needing a special critical filtration cleanliness level and negative pressure environment.
    ItemID-HNHID-1CHID-4CH
    SIZE(L x W x H)708 x 453 x 532 mm 27.9” x 17.9” x 21.0”708 x 708 x 794 mm 27.9” x 27.9” x 31.3”1416 x 1416 x 1694 mm 55.8” x 55.8” x 66.8”
    Max Air Flow1700CMH/1000CFM3400CMH/2000CFM13600CMH/8000CFM
    HEPA Efficiency99.99% @ 0.3um H13 @ EN 1822 610*305*292mm-1pcs99.99% @ 0.3um H13 @ EN 1822 610*610*292mm-1pcs99.99% @ 0.3um H13 @ EN 1822 610*610*292mm-4pcs
    Pre-filterN.AG4 @ EN 1822G4 @ EN 1822
    Carbon FilterN.AN.AVOC
    MaterialEP Coated Cold-rolled steel/SUS 304
    PAO TestSUS 304 Φ10mm
    G.W.52 kg / 115 lbs86 kg / 190 lbs416 kg / 917 lbs
    N.W.41 kg / 90 lbs72 kg / 159 lbs362 kg / 798 lbs
    Pressure SensorOptional 0-500Pa
    HEPA for MinipipeOptional
    Bio Sealed ValveOptional
    Disinfection PortOptional
    HEPA PAO TestOptional
