SS304 Dynamic Pass Box Pass Through Window for pharmaceutical
factory Vaporized
In pharmaceuticals manufacturing facilities, it is essential to
minimise man/material movement and avoid crossing contamination
between different classified areas to achieve desired
classification and to maintain intergrity of products and
processes. Pass box is designed to allow material transfer without
much personnel movement. It also aids controlling ingress of
particulate contaminations into clean room and between different
classified areas.
Indair Clean Room System designs and manfactures static and dynamic
pass boxes meeting different clients' special requirments. Option
of choosing the type of pass box depends on the containment level
and transfer of material from one class of cleanliness to other
class of clieanliness.
Static Pass Box
* Double walled construction
* Electro-magnetic interlocking view panels
* Mechanical/Pneumatic interlocking
Dynamic Pass Box
* Two stages filtration
* Statically & dynamically balanced motor-blower
* Electro-megnetic interlocking
Features:
1, Electrical or Mechanical interlocking system.
2, Multiple Option of Materials to minimize the cost.

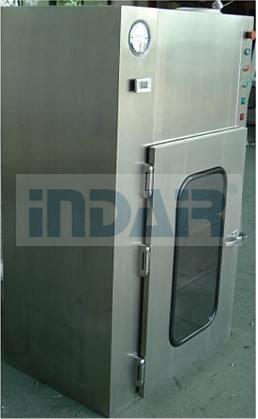

3, Door with viewing glass.
4, Air Shower Type
5, UV Lamp Sterilization
6, Easy-to-install by Wall Mounted or Floor Mounted
7, Customized Size and Function Design
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided
according to clean room design, while the inner dimension is for
the operation area.
2. The dynamic passbox is suit for the transmission happened from
lower cleanliness environment to higher cleanliness environment. If
the transmission happens between same cleanliness, static passbox
is recommended.
3. The direction of door opening should be considered according to
the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the
floor-mounted passbox is recommended.
| MODEL | BC-060608T |
| OUTTER SIZE(W x D x H) | 760 x 660 x 1350 mm |
| INNER SIZE(W x D x H) | 600 x 600 x 800 mm |
| CLEAN CLASS | ISO CLASS 5 (100) |
| AIR FLOW(m/s) | 0.45m/s / 22 m/s |
| uv LIGHT | Philips |
| qty of nozzle | 4 |
| air shower time(s) | 12 Second(0-99Second could changable) |
| efficiency | H13 HEPA filter G4 Pre-Filter |
| Medium | Hepa Filter: Mini Pleated fiberglass: |
| material | sus304,201,202 |
| Power Supply | 220V AC 1PH 50 Hz |
| Power | 0.30 kW |
| G.W. (kg ) | 274 kg |
| N.W.(kg ) | 150 kg |
| SIZE(LxWxH,mm) | 920 x 850 x 1580 mm |
